Iqony Camphausen

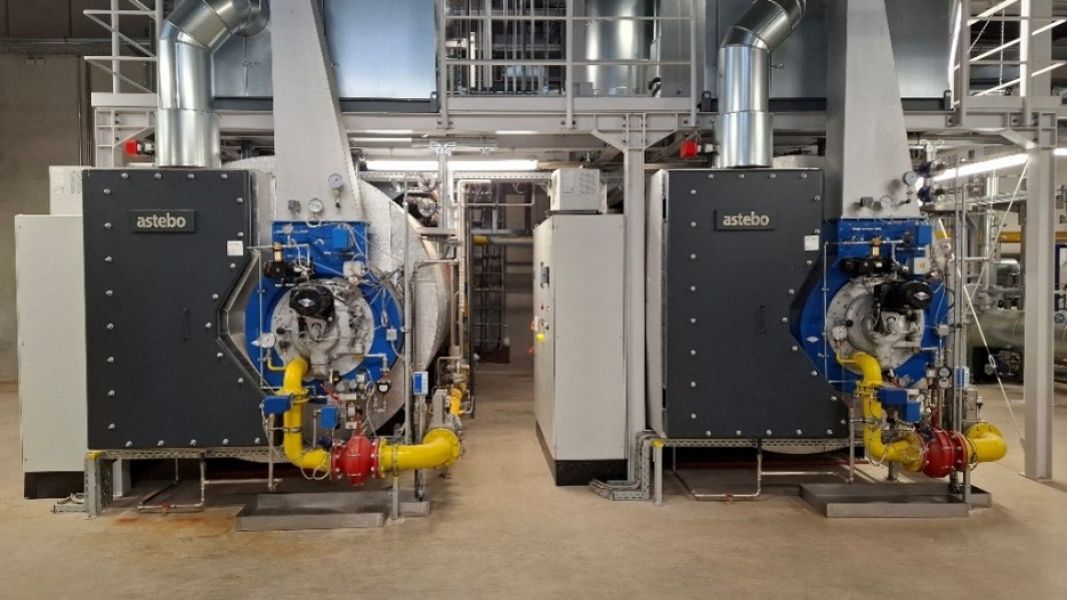

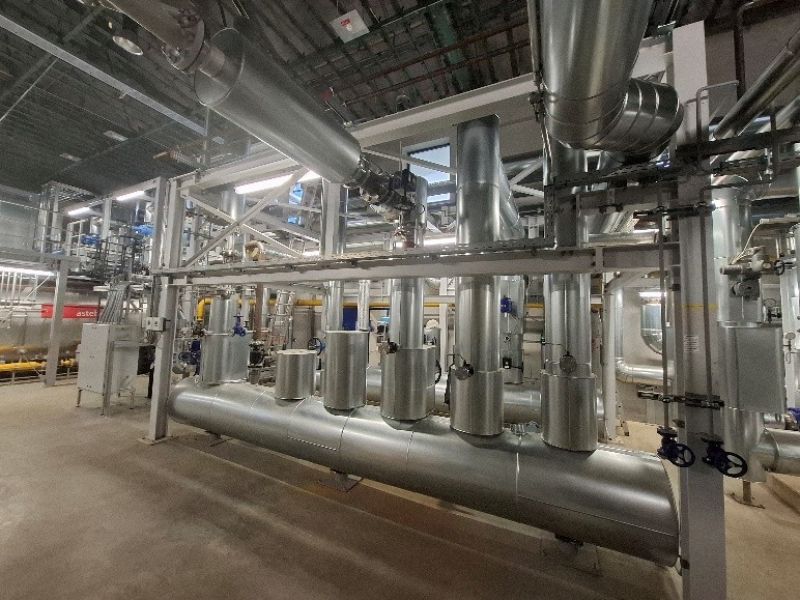

A district heating power plant was rebuilt as a hot water iKWK plant at the former camphouse near Saarbrücken. Two gas boilers, a heat pump for the use of heat from the pit water and a power-to-heat electric boiler incl. Pipe system, ventilation and other plant technology as well as the connection to the district heating system.
Technical data:

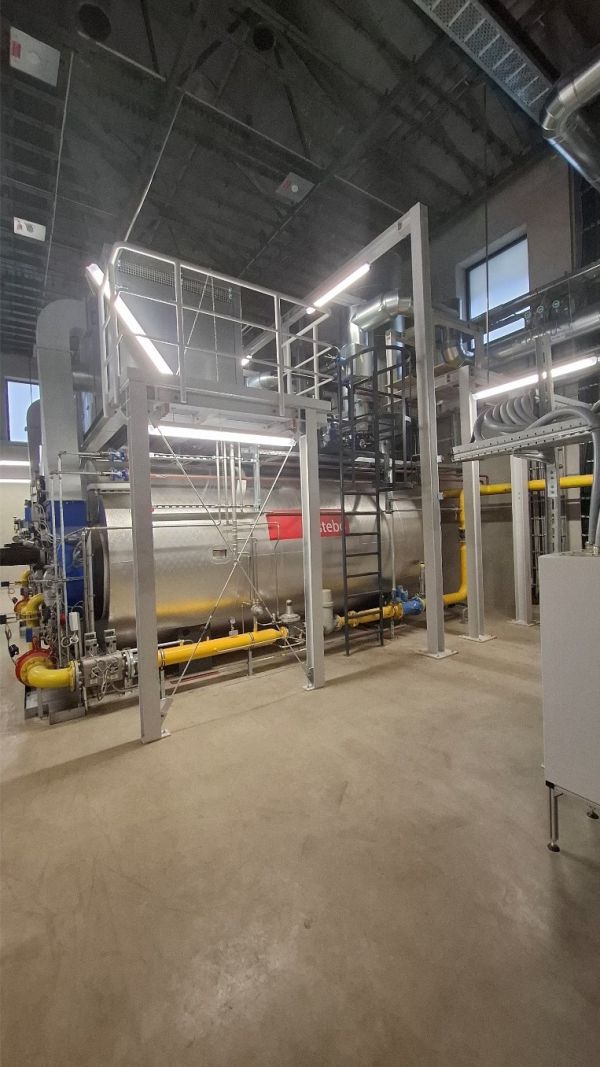

- Heat output Gas boiler: 2 × 4 MW Hot water 130 °C

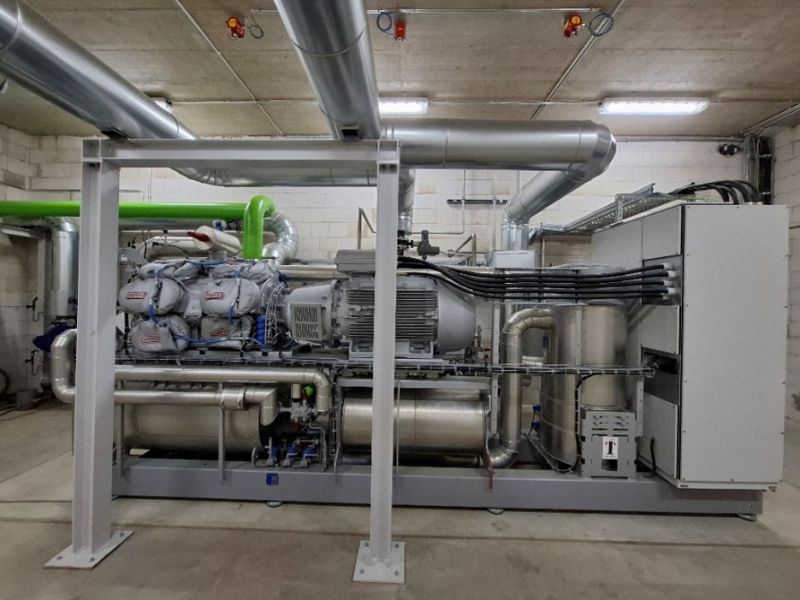

- Heat output Heat pump: 1 MW
- Temperature heating side WP: 65 / 90 °C
- Temp. Source page Mine water: 38 °C
- Electric. Power consumption: 294 kW
- COP Heating: 3,4
- PtH E-Kessel: 1.2 MW Hot water 130 °C
